We are sorry to announce that 0703 Brushless Motors is discontinued and will not be available for sales anymore. We recommend you buy its great alternative .
These motors are the stock motors for the Beta75 Pro 1S brushless drone.
Note: There are two KV for 0703 motors.
Note: The OG 75pro frame doesn't fit 0703 19000KV motors.
Recommended Parts
- Propellers:
- Motors:
- Batteries:
- Frame:
Really not recommend the these 0703 motors with a 65mm frame ( like Beta65 Pro frame or BWhoop B06 etc). Why? The combo of 0703 motors and 31mm props (for 65mm frame) has a really low efficiency. Really not power enough. For the 65mm 1S brushless drone, recommend the .
Here is the testing result of different motors and frames combo.
- Throttle value means the position when the drone hovers in the air.
- Flying time is the time from OSD voltage value 4.3V->2.8V.
- All tested with 4-blades props. 31mm props or 40mm props.
- All throttle values are tested on full charged 550mAh batteries.
- The KV value of 0703/0603 motors are both 15000KV.
Specification
- Plug：Micro JST-1.25 3-pins connector
- Height: 16.2mm
- Width: 10mm
- Weight: 2.1g ( with connector)
- Shaft: φ1.0mm
- KV (rpm/V): 15000KV / 19000KV
- Voltage: 3.7-7.4V
- Battery: 1S lipo battery (2S is not recommended)
- Load Current: 1.8-3.8A
- Pull: 23-40g
- Power: 6.7-28W
- Efficient: 3.4-1.4g/W
- Usage: for 1S brushless multirotor like Beta75 Pro or BWhoop B06 etc
If you occur the issue of motor not spin up properly, go to BETAFPV Support Center for .
Package

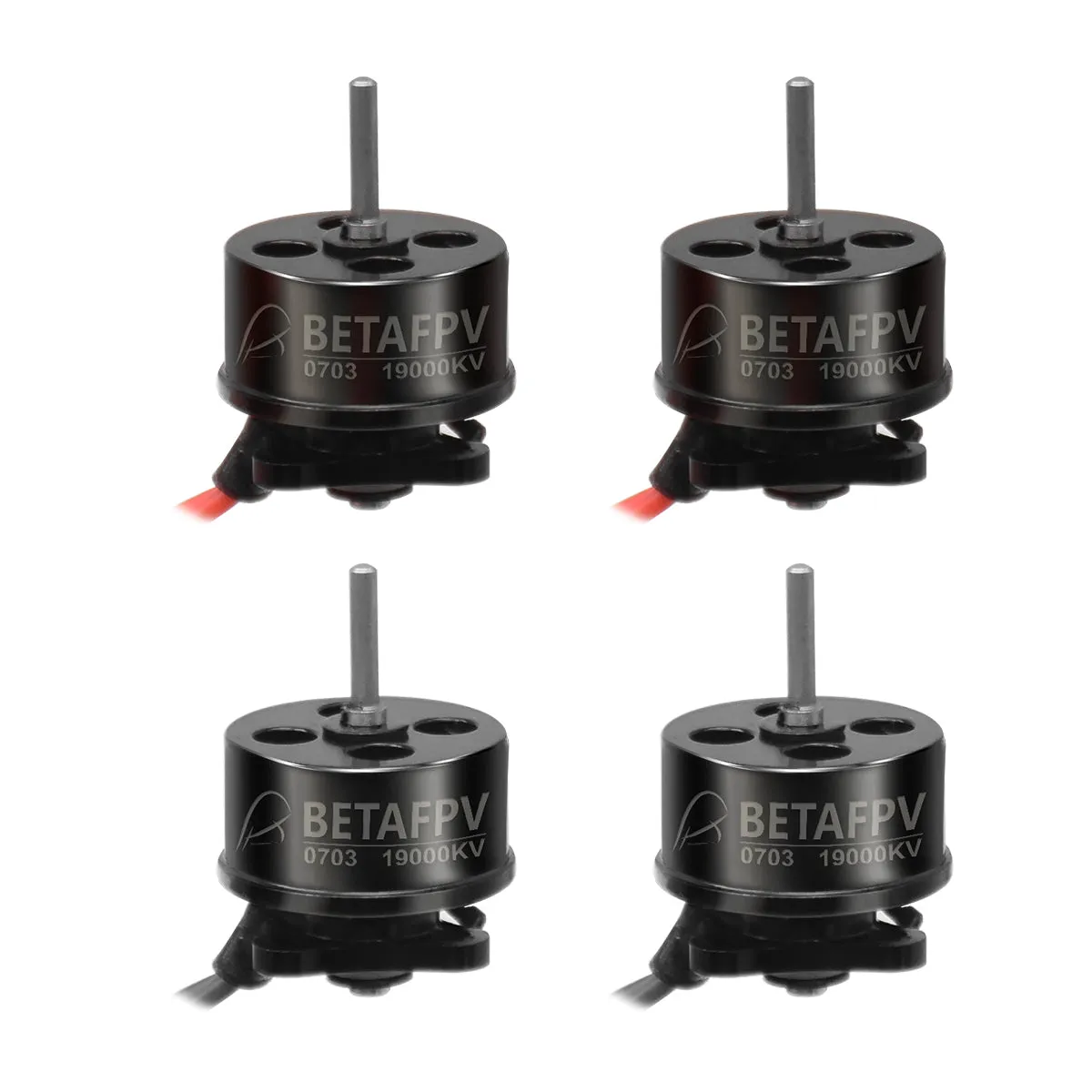

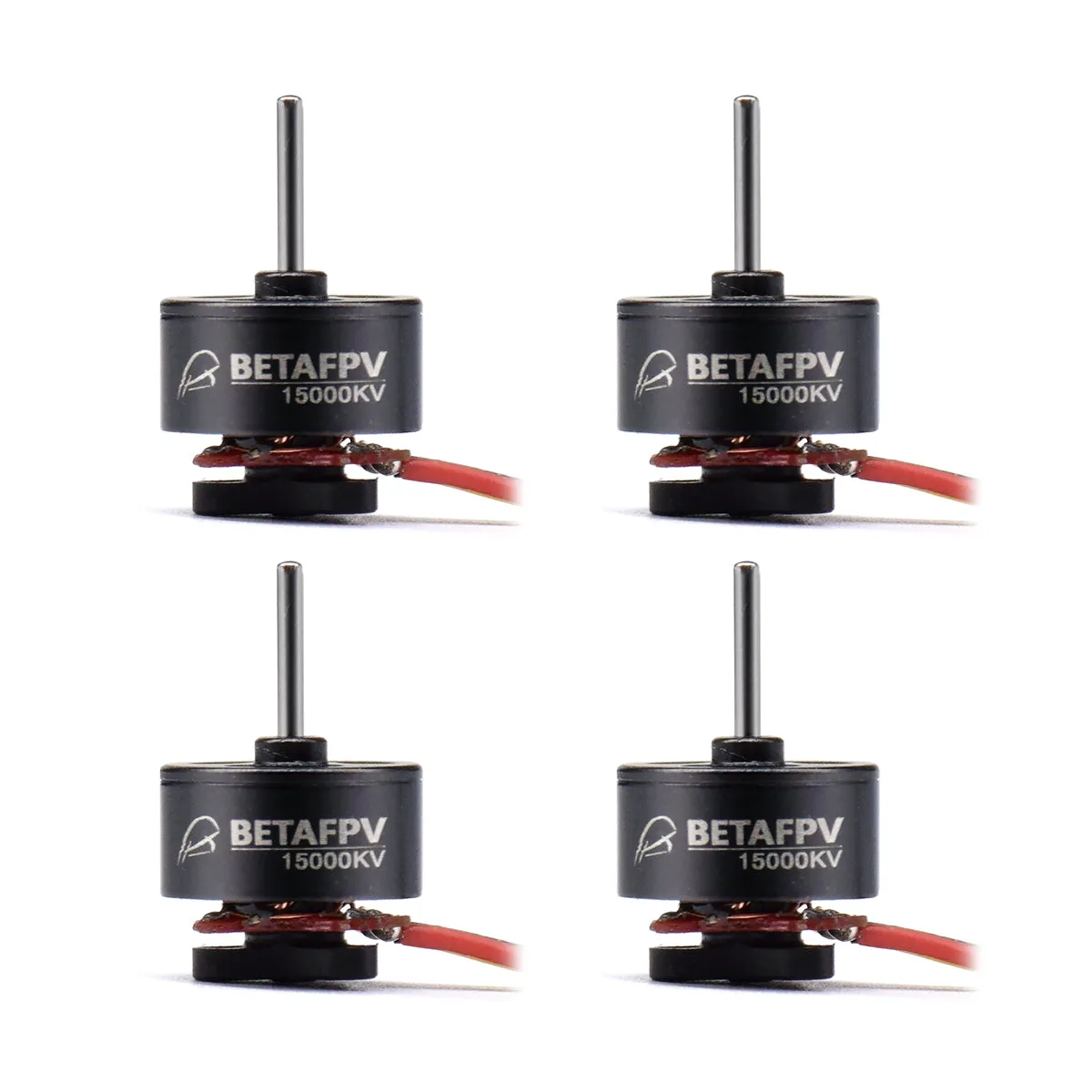

- 4 * BETAFPV 0703 15000KV Brushless Motors / 19000KV Brushless Motors
- Some M1.4*3 screws (Fit for Beta65 Pro and Beta75 Pro frame)
