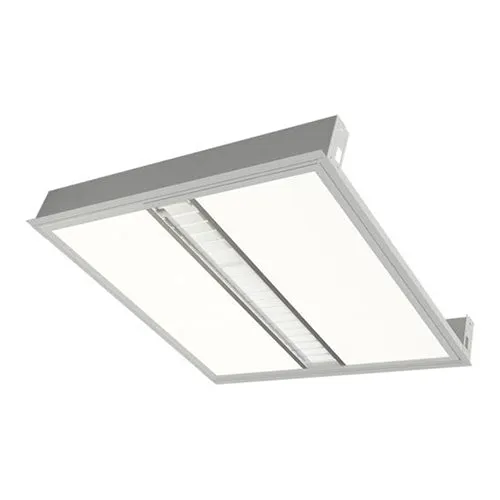

Advantage Environmental Lighting FRSL Architectural Recessed Luminaire with Aluminum Baffle
The FRSL is a beautifully constructed architectural recessed troffer available in 2x2 and 2x4 sizes. The FRSL features an elegant aluminum baffle, and frosted satin acrylic panels. Fixture is illuminated from acrylic panels and center baffle.

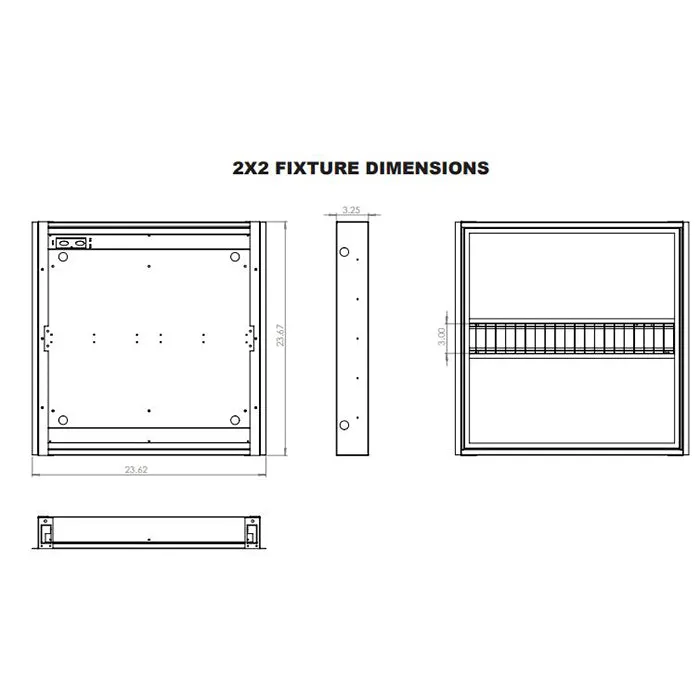

CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body. Knockouts and access plate provided for easy wiring. Fits standard grid systems.
OPTICAL SYSTEM
High output LED’s available in 2700K, 3000K, 3500K, 4000K, and 5000K. >82 CRI. Integrated aluminum baffle and high transmission frosted acrylic side panels. Side panels provide a low-brightness glow, while the center rails and high reflectance baffle blades control the primary beam.
ELECTRICAL SYSTEM
0-10V dimming driver included standard, 120/277V applications. Long-life LED system rated for >100K lifehours (L70 @ 45°C. Complies with federal energy efficiency standards.
MOUNTING
This fixture is designed to be recessed mounted.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Made in the USA, BAA Compliant.
WARRANTY
5-Year Limited Warranty.
