Product Details
＋
NOTE:- We might take 4 to 8 days to ship this product.

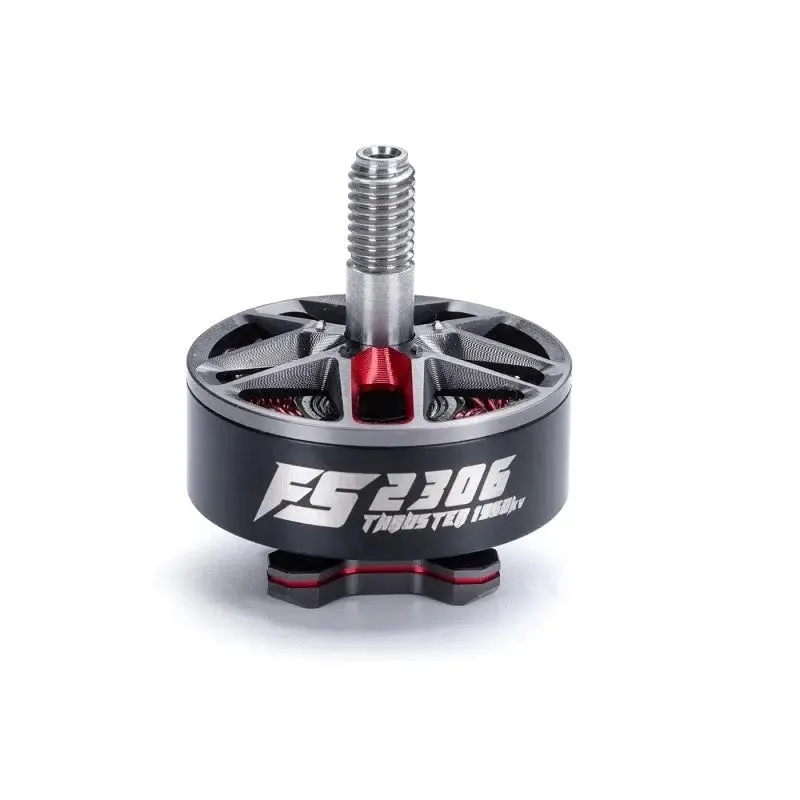

The MAD CO FS 2306 Thruster FPV Drone motor is designed for FPV drone enthusiasts seeking top-tier performance and agility. With a KV rating of 2550, this motor is optimized for use with 4S LiPo batteries, delivering impressive thrust and responsiveness. Thruster FPV Drone motor lightweight construction and precise engineering make it ideal for both racing and freestyle flying, ensuring smooth and dynamic aerial maneuvers.
Features:
- Model: MAD Thruster FS2306 V1.0
- Configuration: 12N14P (12 slots, 14 poles) for enhanced efficiency.
- Dimensions: 28.2 × 32.2 mm for optimal weight distribution.
- Rotor Balance: ≤ 5 mg for stable performance.
- Mounting: M5 nut for secure propeller attachment.
- Shaft Diameter: 4 mm, compatible with standard mounts.
- Cable Length: 150 mm, 20# AWG silicone for flexibility and durability.
Package Include:
1× MAD CO – FS 2306 Thruster FPV Drone motor (Green) 2550KV-4S
Specification:-
| Motor KV (RPM/V) |
2550 |
|---|---|
| Motor Type |
FPV Motor |
| Shaft diameter (mm): |
4 |
| Max. Efficiency Current (A) |
38.7 |
| Max. Power (W) |
634.7 |
| Maximum Thrust (gm) |
1.3 |
| No-load current (A) |
1.97 |
| Operating Temperature (°C): |
-20 to 80 |
| Shipping Weight | 0.0 kg |
