Experience precision and safety in every detail with the Unitron 23714RB-ESD System - where ESD-safe technology, achromat lenses, and zoom magnification come together for unparalleled performance.

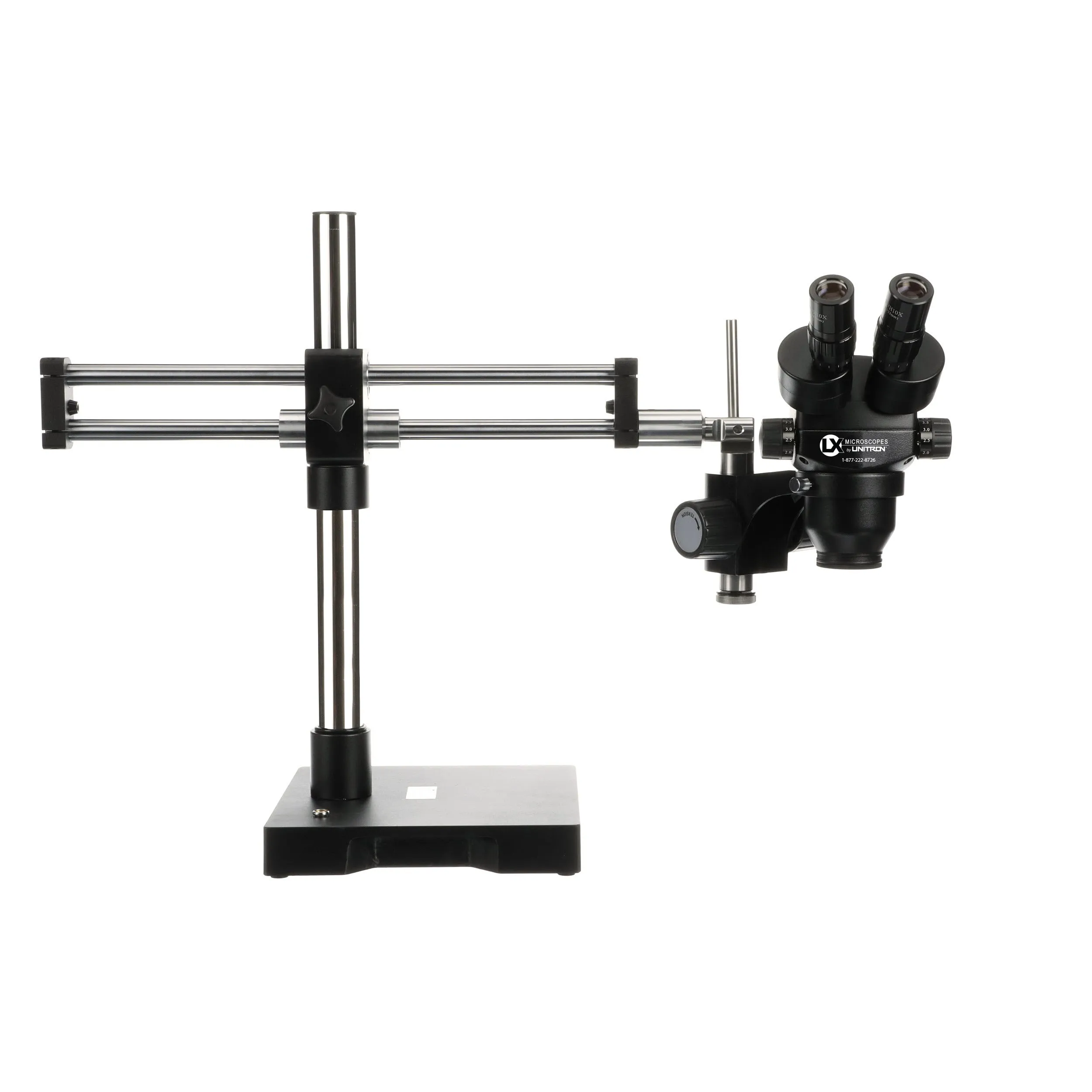

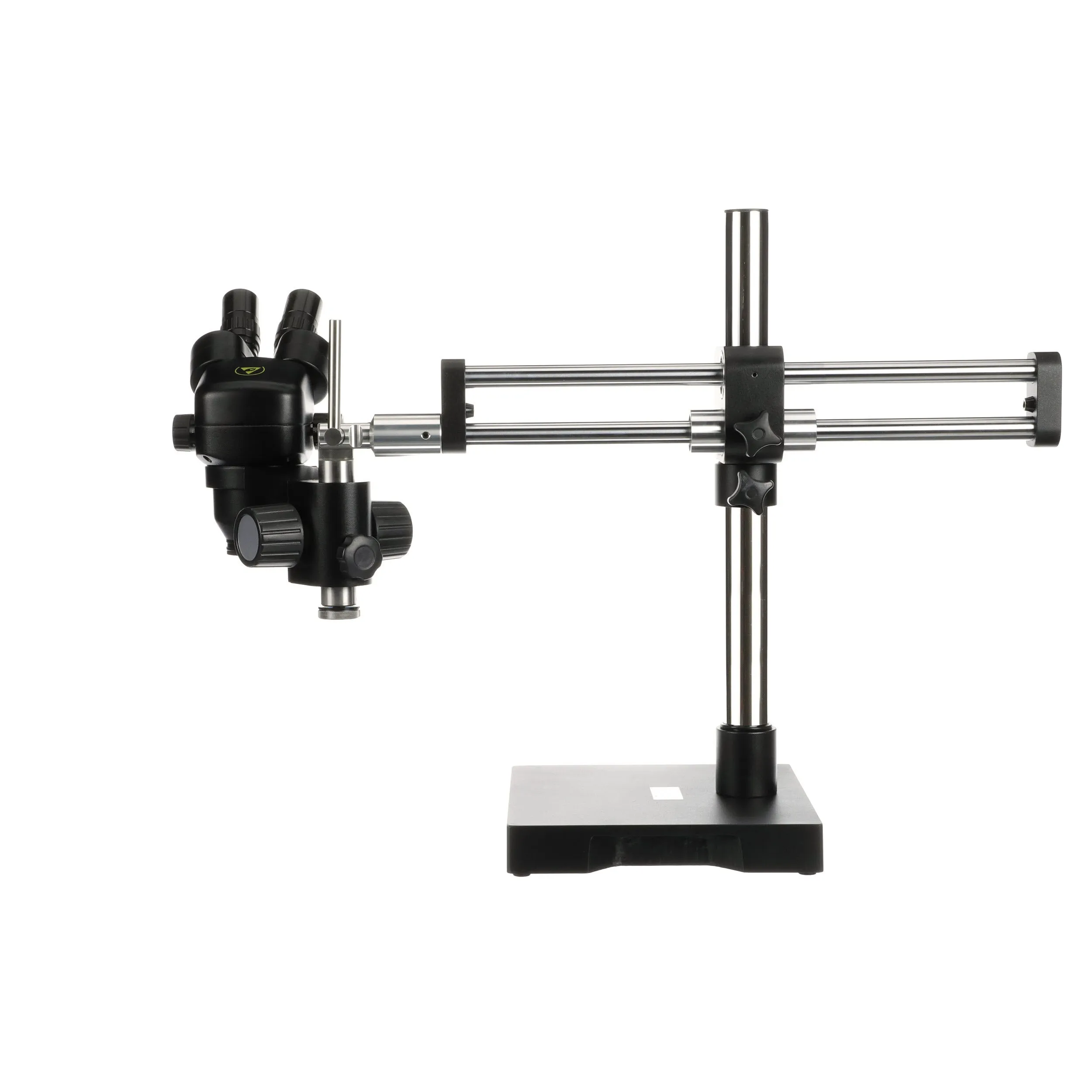

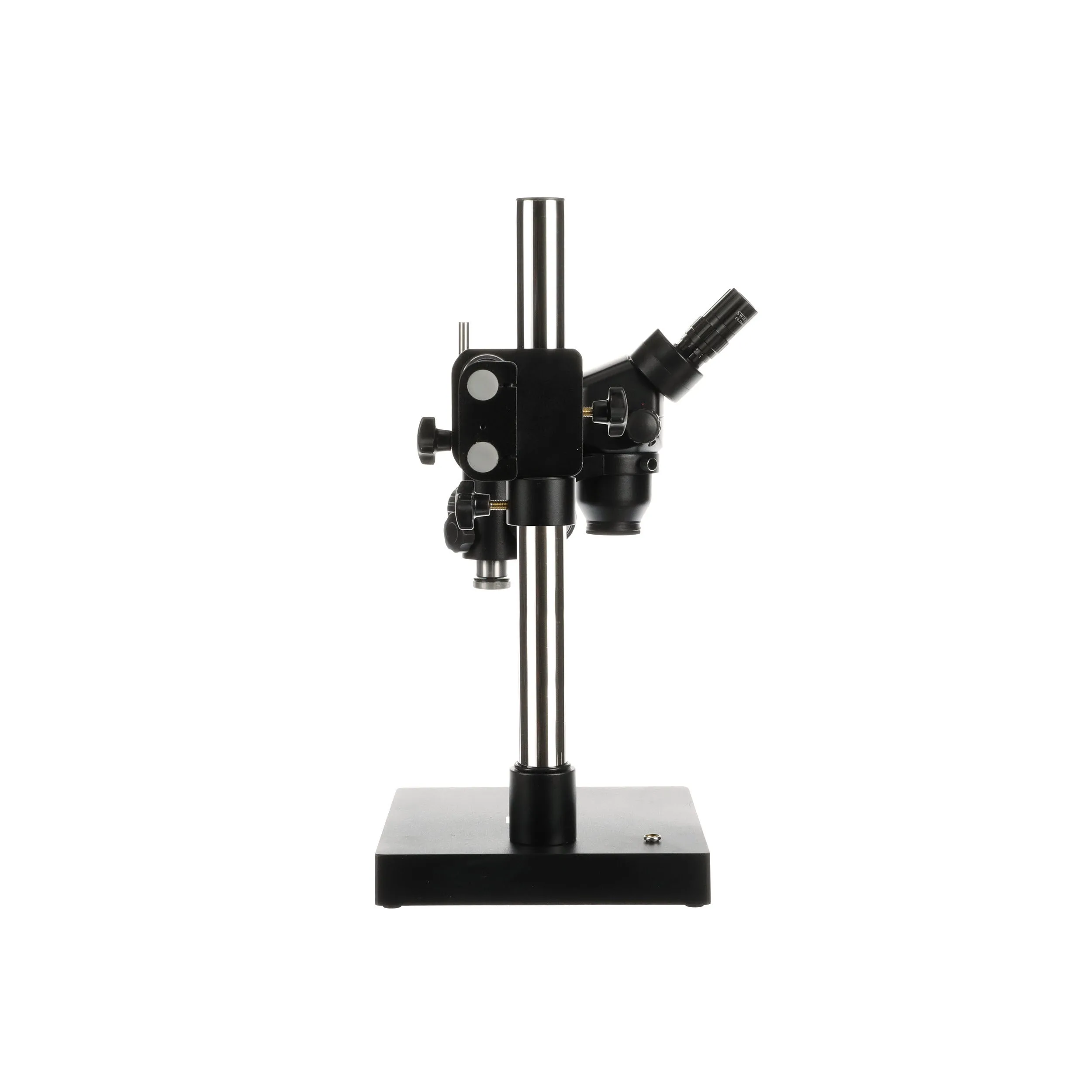

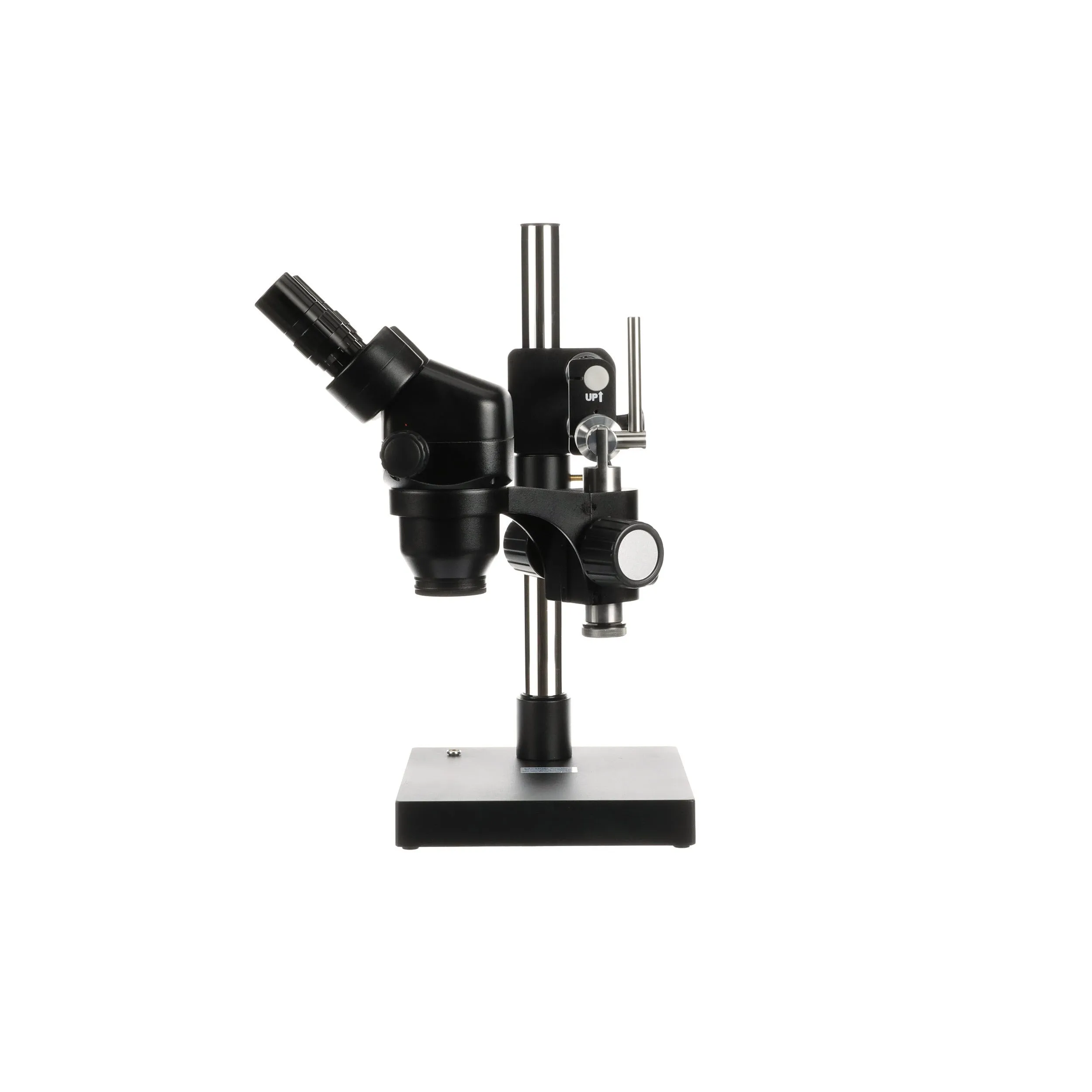

Introducing the Unitron 23714RB-ESD System 273 S-Z Binocular with Boom Stand - an industry-leading microscope system designed for precision work in ESD-sensitive environments. With its cutting-edge ESD-safe technology and high-quality achromat lenses, this unit provides crystal-clear imaging and unparalleled accuracy for all your inspection needs. And with its versatile zoom magnification feature, you can easily adjust to any level of detail without sacrificing clarity or focus. Whether you're working in electronics manufacturing, medical testing, or any other field that demands utmost precision and safety, trust the Unitron 23714RB-ESD System 273 S-Z to deliver exceptional performance every time
- This feature ensures that the device will not produce any static electricity that could damage nearby equipment
- Achromat Lenses: The binocular features' achromat lenses which provide a clear and sharp image of the object being viewed
- These lenses have been specially designed to reduce chromatic aberration, resulting in improved color accuracy and contrast
Specifications
- ESD-safe. Body and stand feature baked-on powder-coat with a metal-laced paint that measures 105 Ω/sq. (static dissipative) and include 10mm static grounding cables, metal boom stand bushings and metal pads on the microscope base.
- Binocular viewing head
- Super widefield 10x/23mm eyepieces with eyeshields
- High-quality achromat lenses with anti-reflective coatings
- 0.7x 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
- Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
- Magnification range 7x-45x (with 10x eyepieces)
- 8³ working distance (when used with optional 0.5x reducing lens); Standard working distance with 1.0x lens shield is 118mm
- Heavy duty cast aluminum housing
- Dual boom roller-bearing stand with 17.5³ vertical and 22³ horizontal reach (10³ x 10³ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
- Shipping weight 61 lbs.
